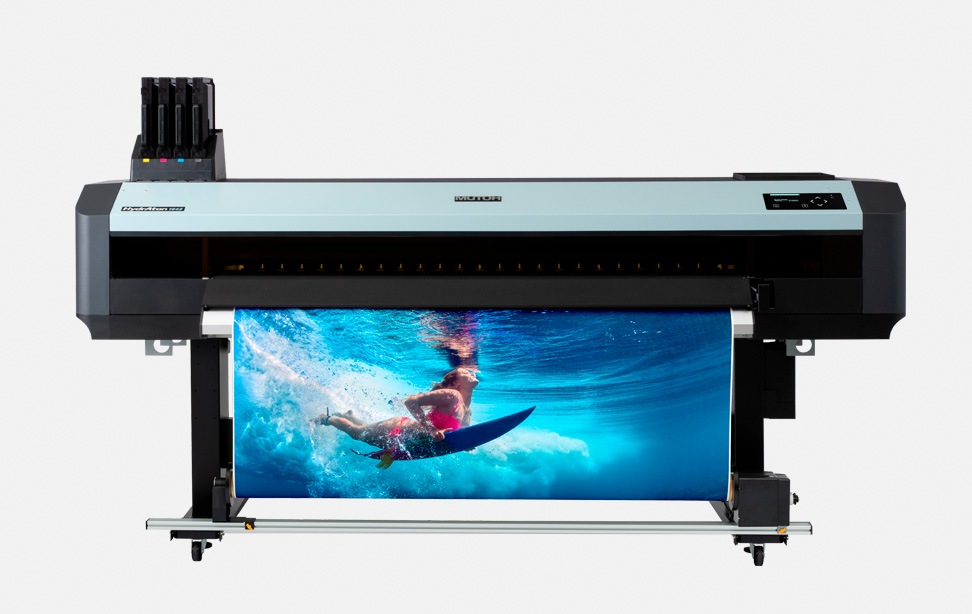

Mutoh HydrAton 1642 64" Water Based UV InkJet Printer

OVERVIEW

The MUTOH HydrAton 1642 is a new generation of 64" wide-format printer designed to produce outstanding graphics for both interior and exterior applications.

At the heart of the HydrAton is Fujifilm's innovative AQUAFUZE™ water-based UV ink technology. It combines many of the environmental and operational advantages of water-based inks with the durability associated with UV printing, producing vibrant, scratch-resistant graphics with low odour and low VOC emissions.

Equipped with dual AccuFine HD printheads and MUTOH's advanced ink film formation technology, the HydrAton delivers sharp detail, smooth gradients and excellent colour reproduction across a broad range of media.

This versatility makes it an excellent production machine for print businesses wanting to produce both interior graphics and durable exterior work from a single printer.

Typical applications include:

• Interior and exterior signage
• Retail and point of sale graphics
• Posters
• Exhibition and event graphics
• Window graphics
• Wallcoverings and wallpaper
• Interior décor
• Promotional graphics
• Backlit displays
• Self-adhesive graphics

The HydrAton's ultra-thin ink film helps retain the original appearance and texture of the media while delivering excellent scratch resistance, making it particularly attractive for premium interior and display applications.

REASONS TO BUY

The MUTOH HydrAton 1642 is a strong choice for print businesses looking for a versatile, environmentally responsible wide-format printer capable of producing both interior and exterior graphics.

• Interior and exterior production from one machine – suitable for signage, retail graphics, wallcoverings, posters, exhibition graphics and a wide range of other applications.
• Innovative water-based UV technology – AQUAFUZE™ combines the low-odour characteristics of water-based ink with the durability associated with UV printing.
• Excellent print quality – dual AccuFine HD printheads deliver sharp detail, smooth gradients and vibrant colour.
• Durable output – excellent scratch resistance makes the HydrAton suitable for demanding commercial applications.
• GREENGUARD Gold certified inks – particularly beneficial for graphics used in interior environments.
• Low VOC and low odour operation – creating a more pleasant production environment and supporting more sustainable print production.
• Broad media compatibility – print onto self-adhesive vinyl, PVC-free materials, wallcoverings, films, banner media and other compatible substrates.
• No primer or optimiser required for many applications – helping simplify production and reduce additional consumable requirements.
• Professional production workflow – MUTOH VerteLith RIP software is included.
• Backed by Entwistle expertise – optional installation and training, free telephone technical support, engineering support and flexible service contracts are available.

SPECIFICATIONS

• Maximum Print Width -  1,615 mm (63.6")
• Maximum Media Width - 1,625 mm (64")
• Printheads - Dual AccuFine HD
• Ink Technology - AQUAFUZE™ Water-Based UV
• Colours - CMYK
• Ink Pack Size- 1 Litre
• Maximum Print Speed - Up to 17.2 m²/hour
• Head Heights - 1.5 mm / 2.0 mm / 2.5 mm
• RIP Software - MUTOH VerteLith
• Connectivity - Gigabit Ethernet
• Take-Up - Motorised take-up system
• Manufacture - Japan

KEY FEATURES

• 64" / 1,625 mm media width
• Dual AccuFine HD printheads
• AQUAFUZE™ water-based UV ink technology
• Interior and exterior print applications
• Vibrant, durable and scratch-resistant output
• Low-odour operation
• Low VOC emissions
• GREENGUARD Gold certified inks
• Automated media feed adjustment
• Media tracking system
• Motorised take-up
• VerteLith RIP included
• Designed and manufactured in Japan

MEDIA

One of the HydrAton's major advantages is its ability to produce a wide variety of applications using a broad range of roll-fed media.

Suitable media includes:

• Self-adhesive vinyl
• PVC-free media
• Wallpaper and wallcoverings
• PET films
• Polypropylene
• Banner materials
• Backlit films
• Poster media
• Display materials
• Specialist coated substrates

AQUAFUZE™ ink creates an exceptionally thin printed film, helping preserve the original texture and characteristics of the underlying media. The technology is compatible with a variety of media without requiring primers or optimisers.

As experienced commercial printers ourselves, Entwistle can also advise on media selection. We understand that the combination of printer, ink, media and application is just as important as the specification of the machine itself.

IN THE BOX

The MUTOH HydrAton 1642 is supplied with:

• MUTOH HydrAton 1642 printer
• Printer stand
• Motorised media take-up system
• MUTOH VerteLith RIP software
• Associated accessories
• User documentation

Ink, media and other consumables are available from Entwistle, allowing us to provide ongoing support for your machine after purchase.

INSTALLATION

Professional installation and operator training are available from Entwistle as an optional service.

Our trained engineers can deliver, install and commission your new printer, configure the system and ensure it is operating correctly before handover.

We can also provide operator training, helping your team understand the machine, software and day-to-day operation so that they can begin producing high-quality work with confidence.

Our involvement doesn't have to end with installation. Entwistle provides ongoing telephone technical support, engineering support, repairs and a choice of service contracts to keep your equipment operating effectively throughout its working life.

SERVICE & SUPPORT

Buying a production printer is a long-term investment, so having access to reliable support can be every bit as important as choosing the machine itself.

Free telephone technical support

Customers who purchase their printer from Entwistle have access to free telephone technical support. Many operational problems can be diagnosed and resolved remotely, helping get your machine back into production quickly without waiting for an engineer visit.

Service contracts

For customers who want greater cost certainty and comprehensive protection, we offer a choice of rolling one-year service contracts or three- and five-year service contracts.

Depending on the agreement selected, service contracts can include:

• Engineer call-outs
• Parts
• Labour
• Telephone technical support
• Preventative servicing and maintenance
• Fault diagnosis and repair

A service contract provides the reassurance of knowing that specialist technical support is available when you need it while helping protect against unexpected repair costs and minimise production downtime.

A rolling one-year contract provides flexibility for businesses that prefer a shorter-term commitment, while three- and five-year agreements provide longer-term support and greater cost certainty.

Support without a service contract

You don't have to take out a service contract to receive support from Entwistle.

If your machine develops a problem and isn't covered by a service agreement, we can arrange for one of our highly trained engineers to diagnose and repair it. Engineer call-outs, labour and any parts required are chargeable where the machine isn't covered by a service contract or warranty.

This gives customers the flexibility to choose the level of ongoing support that best suits their business.

SUSTAINABILITY

Sustainability is an important consideration when investing in new print technology, and the HydrAton has been developed around a more environmentally responsible approach to wide-format printing.

Its AQUAFUZE™ ink is primarily water-based and produces low VOC emissions and very little odour. The inks are GREENGUARD Gold certified, making the technology particularly suitable for graphics intended for interior environments.

AQUAFUZE™ is GHS hazard-free and does not intentionally contain applicable CMR or SVHC substances. Its thin ink film provides excellent scratch resistance without requiring an overcoat for suitable applications, while the HydrAton has also been designed for low power consumption.

These characteristics make the HydrAton particularly interesting for businesses producing interior graphics, retail displays and wallcoverings, as well as those seeking to reduce the environmental impact of their wide-format production.

Entwistle shares that commitment to more sustainable print.

Our environmental management system is accredited to ISO 14001:2015, while our quality management system is accredited to ISO 9001:2015. We also hold FSC® Chain of Custody certification.

Across our own print operations we have invested in energy-efficient print technology and premises, extensive solar generation and comprehensive recycling systems. We encourage the use of FSC® certified and recycled papers and alternatives to PVC and single-use plastics wherever appropriate.

Our sustainability approach also extends to the equipment we sell. Correct maintenance can improve machine efficiency and extend the useful life of print equipment, while we aim to recycle packaging materials recovered during printer installations wherever possible.

WHY US?

There is an important difference between buying a printer from Entwistle and buying one from a company that simply sells print equipment:

We are printers ourselves.

Our teams work with professional print technology every day. We test equipment, operate wide-format printers in real commercial production environments and use some of the technologies we sell within our own business.

That practical experience means we understand much more than the specifications on a manufacturer's brochure. We understand how printers perform in the real world – print quality, media choice, colour management, workflow, productivity, reliability and the operating costs that ultimately determine whether a machine is right for your business.

We can help you choose the right machine for what you actually want to produce rather than simply sell you a printer.

And our support continues after you've bought it.

From optional installation and operator training to free telephone technical support, engineer call-outs, repairs and flexible service contracts, Entwistle can support your printer throughout its working life.

Flexible leasing options are also available, allowing businesses to spread the cost of their investment, subject to approval and the terms of the finance agreement.

When you buy from Entwistle, you're buying from people who don't just sell printers – we use them, understand them and support them.

FAQs

Can the MUTOH HydrAton 1642 produce both interior and exterior graphics?

Yes. The HydrAton is designed for a broad range of interior and exterior applications, making it an extremely versatile production printer. Applications include signage, posters, retail graphics, exhibition displays, wallcoverings, interior décor and promotional graphics.

What is AQUAFUZE™ ink?

AQUAFUZE™ is Fujifilm's innovative water-based UV ink technology. It combines the benefits of water-based and UV technologies to produce vibrant, durable and scratch-resistant output with low odour and low VOC emissions.

Are AQUAFUZE™ inks suitable for interior graphics?

Yes. AQUAFUZE™ inks are GREENGUARD Gold certified, making the HydrAton particularly attractive for applications such as wallcoverings, retail interiors and other graphics intended for interior environments.

What media can the HydrAton print onto?

It can print onto a broad selection of roll-fed materials including self-adhesive vinyl, PVC-free media, wallpaper, PET films, polypropylene, banner materials, backlit films, poster media and other compatible substrates.

Does Entwistle provide installation?

Yes. Professional installation, commissioning and operator training are available as optional services.

What happens if I need technical help?

Customers who purchase their printer from Entwistle receive free telephone technical support. Our team will initially try to diagnose and resolve the problem remotely whenever possible.

Do you offer service contracts?

Yes. We offer flexible rolling one-year service contracts as well as three- and five-year contracts. Depending on the agreement selected, cover can include engineer call-outs, parts, labour, technical support and preventative maintenance.

What happens if I don't have a service contract?

We can still help. Our highly trained engineers can attend to diagnose and repair machines that aren't covered by a service contract. Engineer call-outs, labour and replacement parts are chargeable in these circumstances.

Can I lease the printer?

Yes. Flexible leasing and finance options are available, allowing businesses to spread the cost of investing in new print equipment, subject to approval.

Why should I buy my printer from Entwistle?

Because we're print specialists as well as equipment suppliers. We operate professional print equipment ourselves and understand the practical realities of print production, media, colour, workflow and maintenance. That expertise is backed by installation and training options, free telephone technical support, service contracts and engineering support.
